Color Selector (PDF)Standard Building Shapes - Customized Design & Shapes Available
 Single Slope |
 Standard |
 Added Lean-To |
 Side Canopy |
 Multi-Span |
Steel Specifications:
Structural steel sections designed in accordance with American Iron and Steel Institute (AISI) specifications
Cold-formed structural members designed in accordance with AISI specifications
Rigid frame designed in accordance with American Institute of Steel Construction (AISC) manual entitled Plastic Design in Steel
All connecting bolts are high tensile steel (A325 Class)
1. Rafters and columns are not tapered
Maximizes interior space usage compared to tapered rafters & columns

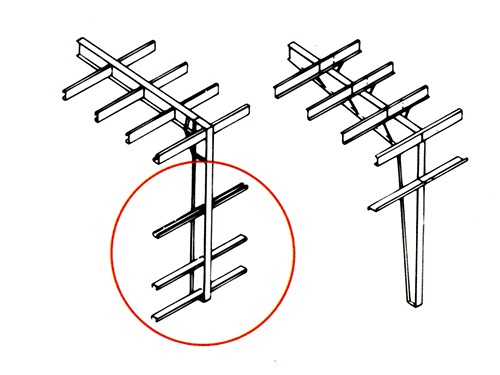

2. Girts fitted inside the column instead of outside the column
Saves interior space & simplifies construction
Requires less steel, bolts & concrete
Requires less construction time
3. Sidewall girt at waist level is standard
Allows for easier installation of windows, ventilators, fans, air conditioners, louvers & other accessories

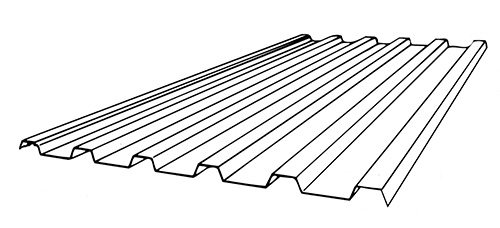

4. Wall and roof steel panels are roll formed and cut to exact specifications
Available in a variety of panel profiles & color finishes
Enhances building appearance
Complements the project’s facing material (concrete, brick, stone, stucco, etc.)
5. Roof purlin and sidewall girt clips are welded into position at our factory
Accelerates construction time
No loose brackets and fewer bolts to inventory, attach or misplace
No on-site welding needed
6. Doors and overhead doors can be located anywhere the customer desires them
Parallel mounting surface permits easy attachment of support & torsion spring assemblies
Eaves struts are designed to provide maximum space for overhead clearances

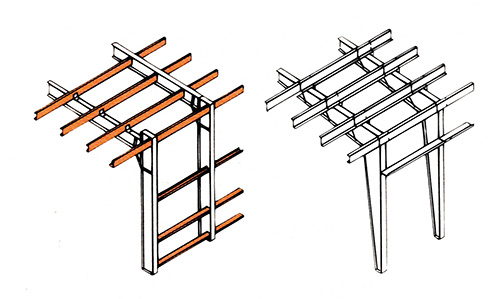

7. Overhangs are built in, not hung on
Strengthens the steel roof as a whole
Eliminates roof sagging & problem leaks

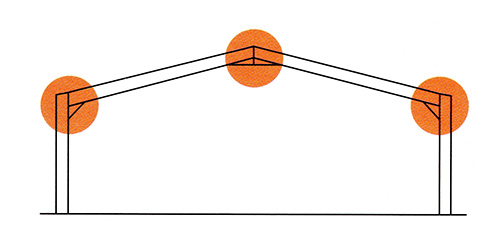

8. Only three connecting points per clear span frame (Industry standard is five)
Increases frame strength & rigidity
Increases assembly speed

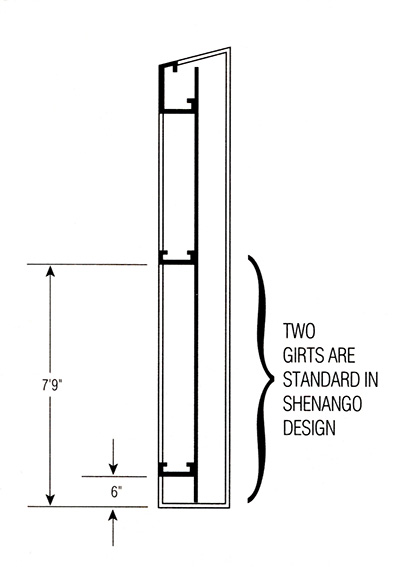

9. First girt installed 6 inches above the floor (Industry standard is 7 to 8 feet)
Adds strength & rigidity to metal walls
Protects individuals & equipment inside the metal building from a lift-truck or vehicle accidentally hitting the wall
10. Endwall frames identical to intermediate frames
Facilitates steel building expansion
Makes door relocation possible
11. Door and window openings are framed and reinforced
Steel subframing is used around all doors & windows
The added support provides maximum rigidity, safety & security
Features of Shenango Steel Buildings:
Anchor bolts included
Comes standard with galvanized steel purlins, girts, subframing for doors, windows & overhead doors
Self-drilling & self-tapping sheet metals screws included
Flange of purlins, girts & frames conceal unsightly wiring & plumbing
Accessory items such as doors, windows, light transmission panels, ventilators & more are available
Other Products
Roofing
Provide a flat or pitched metal roof for your new project
Siding
Provide metal siding for your new project
Retro-Roofing
Convert a flat steel roof into a pitched steel roof
Cover your problem roof
Retro-Siding
Restore unsightly exteriors
Create vertical or mansard metal facades
Universal Building Frames
Widths from 24 to 100 feet
Eave heights from 8 to 24 feet
Save the cost of using galvanized purlins & girts
Integrate traditional building materials & styles
Shen-O-Deck [ Brochure (PDF) ]
Custom-made mezzanines
Maximize the use of your overhead space with a retro-fit mezzanine
We can design & fabricate steel mezzanines into your new Shenango Steel Building
